Non Inverter
PL-P

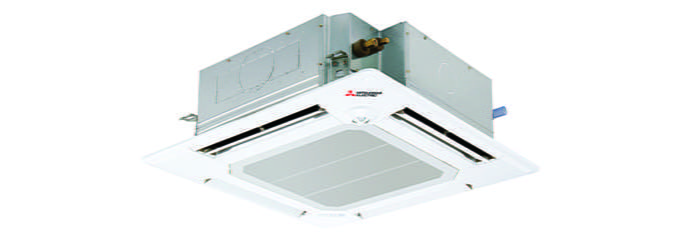

A sophisticated design that matches a variety of rooms and a high level of convenience enhancing your quality of life are combined in this compact, multifunctional indoor unit. The high-power ceiling cassettes offer a wide-flow air outlet that enables effective air conditioning of rooms with atrium ceilings up to 4.5m in height.
Technical Specifications
| Type (Cooling) |
|---|
| Indoor Unit |
| PL-P36BAK |
| Outdoor Unit |
| PU-P36YAKD |
| Performance Parameters | |
|---|---|
| Nominal Capacity (Tr) | 3 Tr |
| Power Supply(Indoor Unit) | 1ph 220-240V 50Hz |
| Power Supply(Outdoor Unit) | 3ph 380-415 V 50 Hz |
| Cooling Capacity | 10.4kW |
| Total Input*2 | 3.37kW |
| EER(W/W) | 3.59 |
| Air Flow Volume(CFM)(Low/Med2/Med1/High)-Indoor | 705/850/955/1060 |
| Air Flow Volume(CFM)-Outdoor | 3350 |
| Guaranteed Operating Range Upper Limit(DB) | 45 |
| Guaranteed Operating Range Lower Limit(DB) | 20 |
| Compressor, Refrigerant & Ambient Operations | |
|---|---|
| Noise Level Indoor (Low/Med2/Med1/High) In dB(A) | 33/37/40/43 |
| Noise Level Outdoor In dB(A) | 54 |
| Refrigerant | R410A |
- 1 Rating conditions Colling-Indoor: 27C (80F) DB, 19C (66F) WB, Outdoor: 35C(95F) DB Refrigerant piping length (one-way): 7.5m (25ft)
- 2 Total input based on the indicated voltage (indoor/outdoor): 1ph 230v 50Hz / 3ph 400v 50Hz
